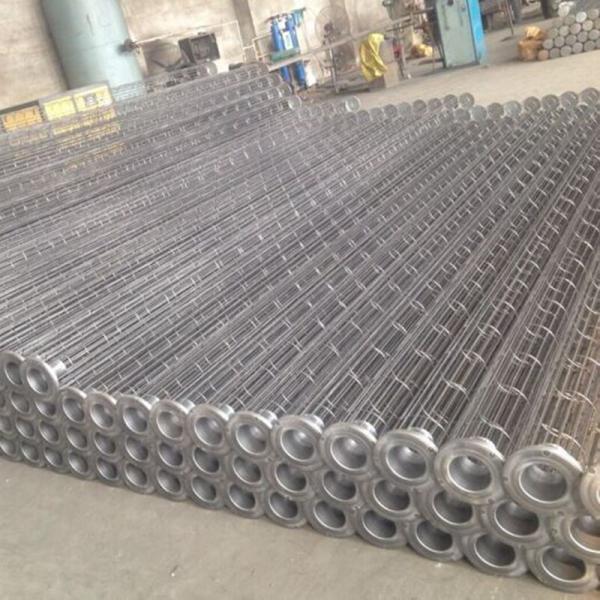

Dust collector skeleton, also known as dust bag cage, dust collection frame,
is an essential part of the bag dust collector. It is mainly used as a framework
to support the dust filter bag, and can be compatible with different numbers
of tendons, such as six, eight, ten, twelve, up to twenty-four tendons. The role
of dust collector skeleton is very large, and it is widely used in metallurgy,
chemical industry, coking, power generation, nonferrous smelting, iron and
steel, building materials, coal and other industrial places.
The dust collector skeleton is available in a variety of shapes and types to
meet different industrial needs. The common shapes are round, oval, flat,
envelope, trapezoid, star and spring. In addition, the dust collector skeleton
can be customized according to customer requirements. In terms of structure,
the dust collector skeleton also has a variety of designs, such as multi-section,
Venturer tube type, protective short tube type, down discharge type, plug type
and chuck type, etc. These structural methods make the dust collector skeleton
more flexible and practical.
In terms of raw materials, the dust collector skeleton is mainly made of high-quality
low carbon steel wire, galvanized steel wire and stainless steel wire. These materials
have corrosion resistance, wear resistance and high temperature resistance, which
can ensure the long-term stable operation of the dust collector skeleton in harsh
industrial environments.
| Cage shape | Round, envelope, trapezoid, spring shape |
| Number of longitudinal bars in bag cage | 8,10,12,14,16,20,24 |
| diameter | φ100,φ110,φ115,φ120,φ125,φ140,φ152,φ155 |
| Surface treatment mode | Galvanized, sprayed, silicone |
| Matching filter bag specifications | φ133*1000mm, φ133*1500mm, φ133*2000mm, φ133*2500mm, φ133*3000mm, φ133*3500mm, φ133*4000mm, φ160*2000mm φ160*2500mm, φ160*3000mm, φ160*3500mm, φ160*4000mm, φ160*4500mm, φ160*5000mm, φ160*5500mm, φ160*6000mm, φ160*7000mm, φ160*8000mm |
